Machine à emballer verticale de peseur de la poche POPP Multihead de haricots

Auto weighing packing machine for beans / vertical pouch packing machine



Technical Feature

1. Material conveying, weighing, filling, bag-making, date-printing, finished bag outputting are all completed

automatically.

2. High weighing precision and efficiency.

3. Packing efficiency will be high with vertical packing machine

4. easy to operate.

5. All main brand of packing machine is famous in the world.

6. Multi-union roll film pulling system makes film running more smooth.

7. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.



Technical Specification
Model	ZH-BL10 packing machine
Packing Speed	30-70 Bags/Min
System Output	≥8.4 Ton/Day
Packing Accuracy	±0.1-1.5g
Bag making mode	Pillow bag, Gusset bag , Punching bag, Connecting bag
Packing Material	laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET.
Range of measuring (g)	5000
Thickness of film (mm)	0.04-0.10
Power Parameter	220V 50/60Hz 2.2KW
Bag size(mm)	VFFS 320: (W) 60-150   (L)50-200 VFFS 420: (W) 60-200   (L)60-300 VFFS520: (W) 90-250    (L)80-350 VFFS 620: (W) 100-300  (L)100-400 VFFS720: (W) 120-350  (L)100-450 VFFS1050:(W) 200-500 (L)100-800



Application of Machine
It's suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips,Snacks,

candy,puffed rice,pistachio,sugar,lentil,small hardware etc.

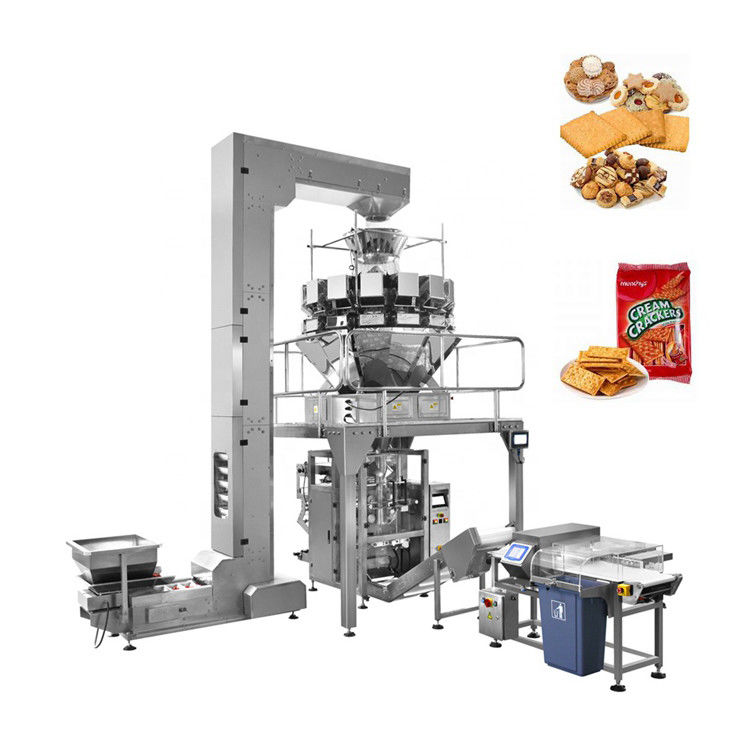

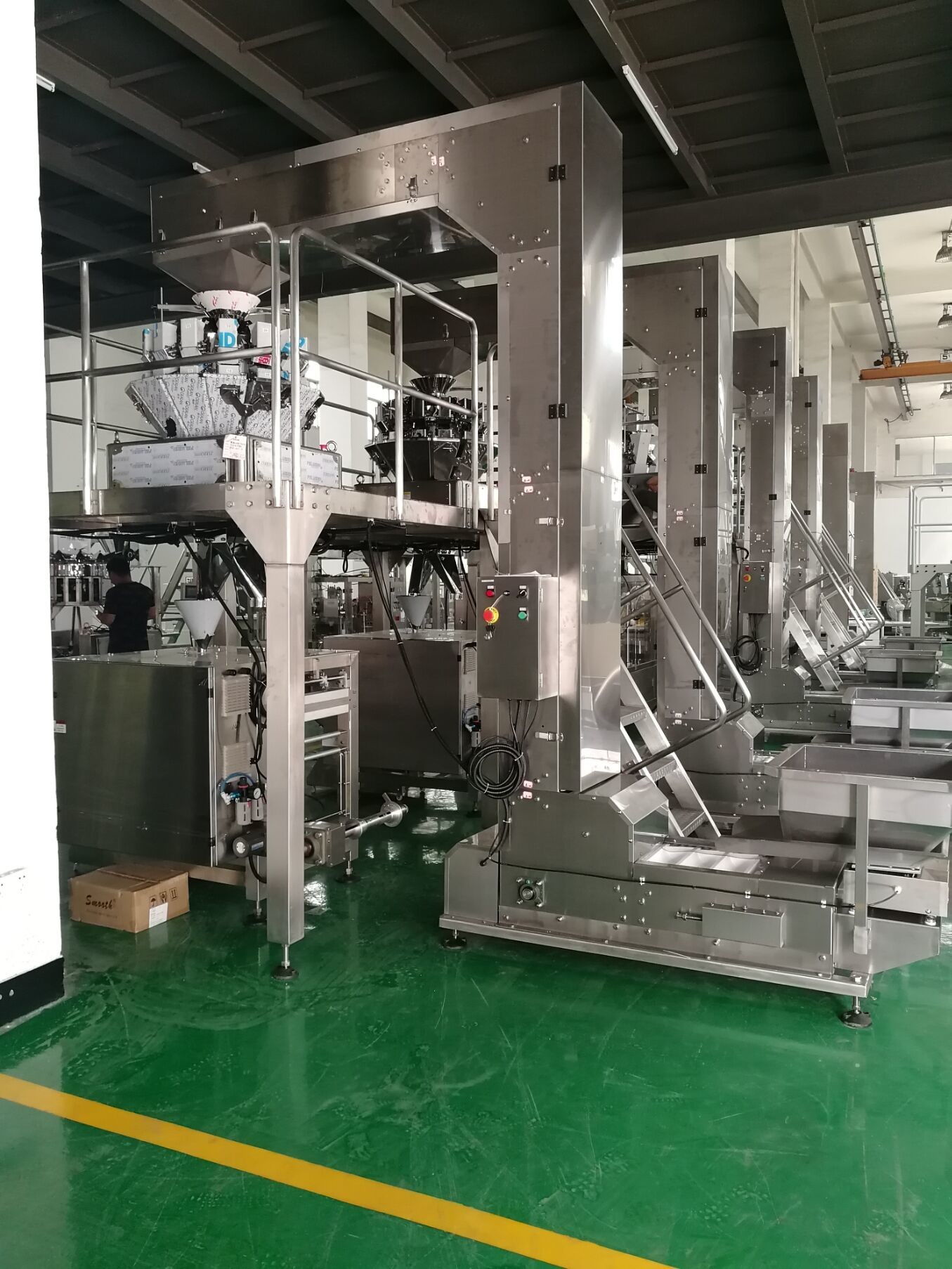

System Composition

1. Infeed bucket conveyor:

    Feed material to multihead weigher

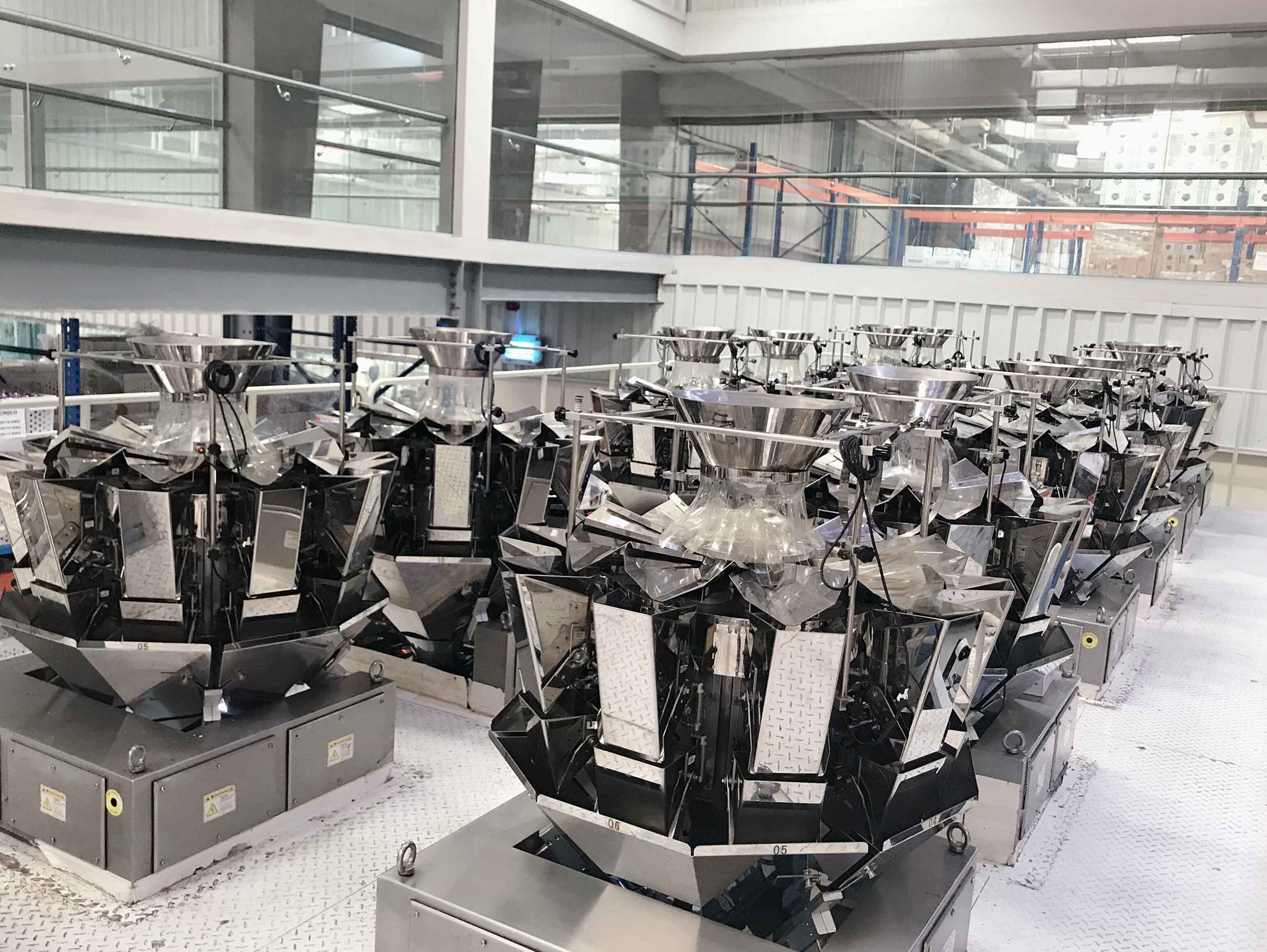

2. Multihead weigher:

    For product weighing.There are different heads of multihead weigher.

3. Working platform:

    Support multi weigher.

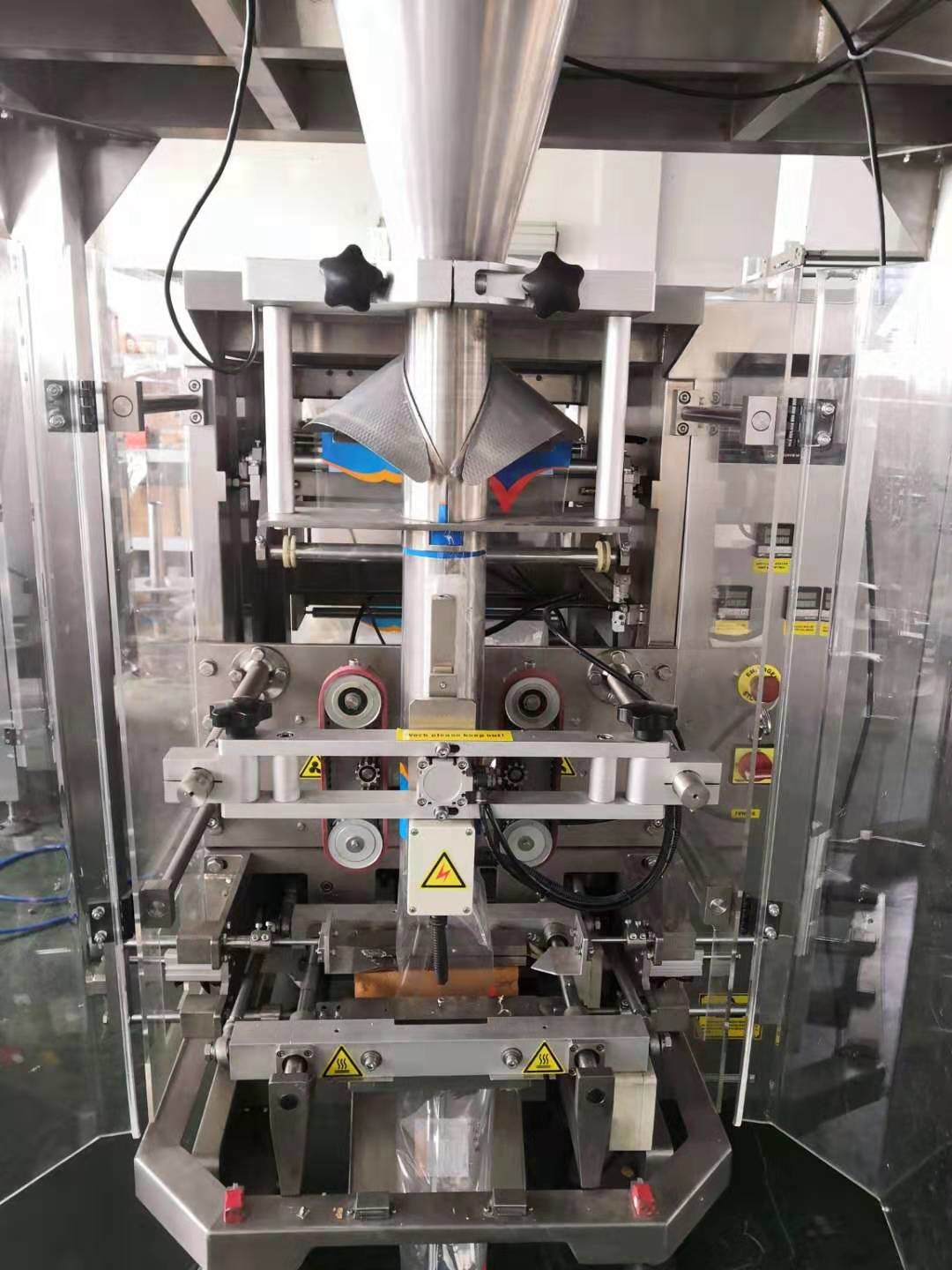

4. Vertical packing machine:

    Pack the material with high speed, and data printed, sealing-off and bag cut are completed automatically.

5. Product conveyor:

    Convey the finished bag to next step.

6. Rotary table:

    For finished bag collecting.





The Bag type:



Our Service:





Pre-Sales Service                                   After-Sales Service
* Inquiry and consulting support.             * Training how to install the machine, training how to use the machine.
* Sample testing support.                        * Engineers available to service machinery overseas.

* View our factory.


Service Terms:

Our mission is provide high quality products and comprehensive service to our customers.We are dedicated

to providing customers with perfect and efficient service.

1. Training service:

We will train your engineer to install our machines and how to fix some small problems.You can send your

engineer to our factory or we can dispatch our engineer to your company.

2. Trouble shooting service:

Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the

way,you need to afford the round trip and accommodation fee.

3.Spare part replacement:

Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.

4.The documents that will be supplied:

1)  Invoice

2)  Packing List

3)  Bill of Lading

4)  Other files that buyer wanted.
